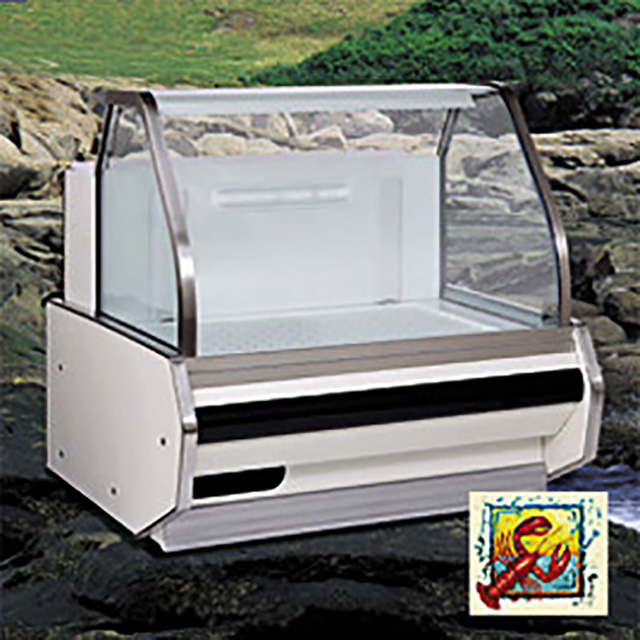

Marineland Curved Glass Live Seafood System
Marineland Curved Glass Live Seafood System

Curved Glass System

Sub Title

Product No.

Distinctive Euro-styling and high-visibility design distinguish the Marineland Curved Glass (CG) Display Systems. Available in profiles to match all casemakers (lighting included), the Curved Glass Systems provide easy-access, rear-service convenience and the option of fully laminated cabinetry. All CG models are available with our patented Marineland BIO-Wheel®.

Our BIO-Wheel filtration module provides a simple, yet superior solution to three-stage system filtration. Easy to install, easy to maintain, it significantly reduces labor cost while dramatically increasing filtration efficiency.

As water enters the module, waste is mechanically trapped by a poly-fiber prefilter pad. The carbon filter pack contains Black Diamond® premium activated carbon for chemical filtration, efficiently adsorbing dissolved organic compounds.

Passing through the filter media trays, water flows onto the BIO-Wheel wet/dry biological filter mounted below. Because system flow causes it to rotate, the BIO-Wheel is constantly exposed to both water and air, thus developing a thriving culture of aerobic nitrifying bacteria.

Tank Abbreviations:
CG - Curved Glass
CM - Casemaker Profile
V - Vertical Glass Profile
DI - Dual System with Inside Shellfish Display

SPECIAL FEATURES
  • Reverse Flow Filtration - Prevents compacting of filter bed, ensuring cleaner water and eliminating the need for periodic filter bed maintenance.
  • Refrigeration Unit - Maintains tank temperatures of 45°-70° F and can be preset to the exact temperature required by the system.
  • UV Disinfection Unit - Helps stop the spread of bacteria and disease throughout the system.
  • Protein Skimmer - Employs heavy aeration to remove organic matter from the tank in the form of foam.
  • Low-voltage Light Switch - Allows you to turn fluorescent display light off during non-business hours to reduce algae growth.
  • Sump-level Viewing Port - Provides a clear look at operating water level at all times.

All systems also available in 220/240V, 50 Hz.

Many of our systems are available with Marineland BIO-Wheel wet/dry biological filtration. BIO-Wheel improves system water quality, lowers maintenance and increases holding capacity.
WHERE TO PURCHASE

DIMENSIONS: 25 " L x 40" W x 50-3/4" H; SHIP WEIGHT: 550 Lbs.; CAPACITY: 55 Gallons; RECOMMENDED LOAD: Lobster 50 Lbs.; POWER REQUIRED: 15 Amps, 115V, 60 Hz; Single BIO-Wheel. Lighting Available

DIMENSIONS: Approx. 50" L x 46" W, Height varies; SHIP WEIGHT: 725 Lbs.; CAPACITY: 100 Gallons; REC LOAD: Lobster 75-100 Lbs., Catfish 50-60 Lbs., Trout 35 Lbs.; POWER REQUIRED: 15 Amps, 115V, 60 Hz; Single BIO-Wheel. Lighting Available

DIMENSIONS: Approx. 72" L x 46" W, Height varies; SHIP WEIGHT: 1000 Lbs.; CAPACITY: 175 Gallons; REC LOAD: Lobster 125 Lbs., Catfish 50-60 Lbs., Trout 35 Lbs.; POWER REQUIRED: 20 Amps, 115V,60 Hz; Single BIO-Wheel. Lighting Available

SHIP WEIGHT: 1200 Lbs.; CAPACITY (per tank): 75 Gallons; RECOMMENDED LOAD (per tank): Lobster 65 Lbs.; POWER REQUIRED (per tank): 15 Amps, 115V, 60Hz

SHIP WEIGHT: 1665 Lbs.; CAPACITY(per tank): 100 Gallons; RECOMMENDED LOAD(per tank): Lobster 75-100 Lbs., Catfish 50 Lbs., Trout 35 Lbs.; POWER REQUIRED(per tank): 15 Amps, 115V, 60Hz
